Spray booths built to your dimensions.
Taurus designs, fabricates, supplies and installs spray booths for all industries, from mining to industrial, for plant and equipment, trucks, buses and vehicles, or any application requiring spray painting.
Taurus also supplies shot blast booths, dust extraction, ducting and fans.
- Nearly 20 years of booth design and installation
- Installed from Cape Town to Kuwait
- Mining, engineering, manufacturing and transport
Type your internal size in millimetres or drag the sliders. The drawing redraws to scale and suggests a model.
Built for industry
Most of what goes through our booths is machinery, steelwork and equipment. These are the sectors we work in every day.
The TS spray booth range
Every model starts from a proven standard design and is then built to your internal dimensions. The same model can be 7 m long for one customer and 9 m for the next. Sizes below are the ones we quote most often.

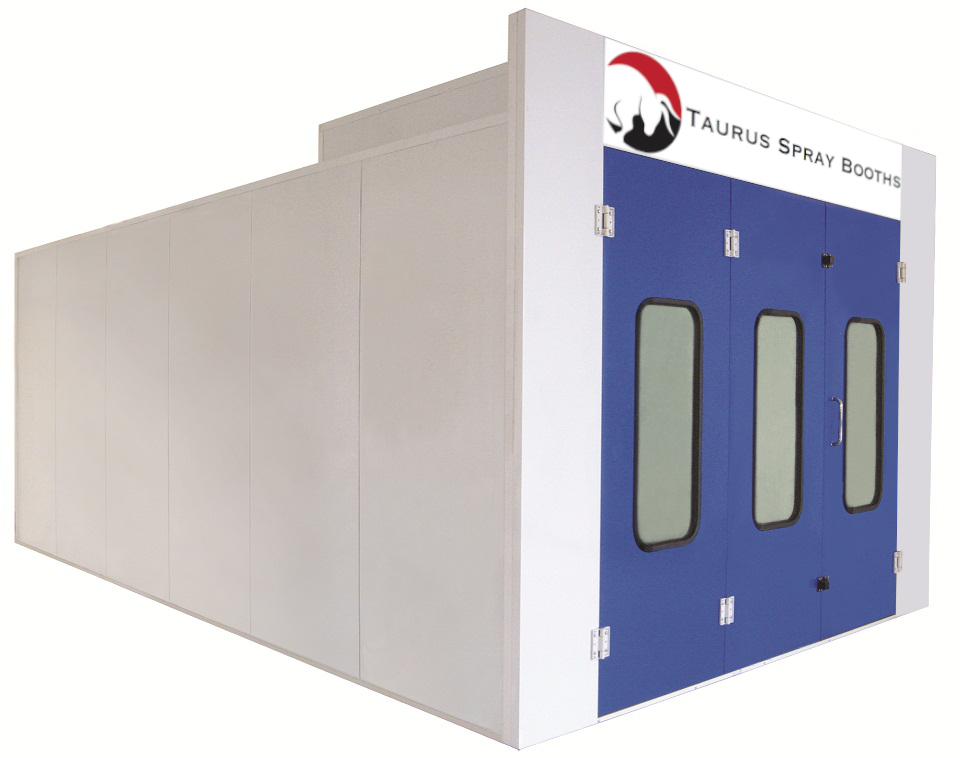

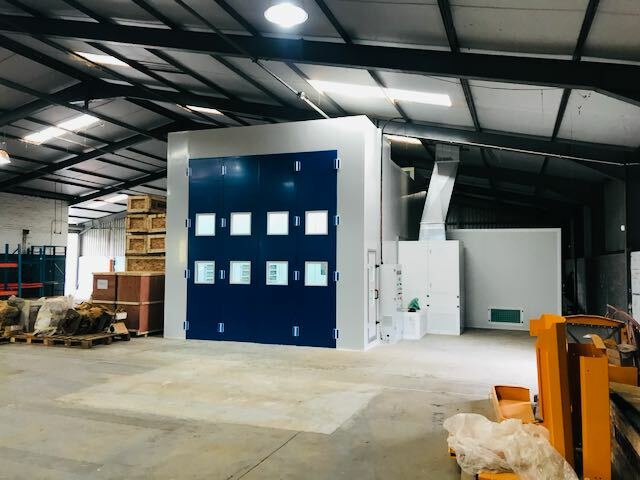

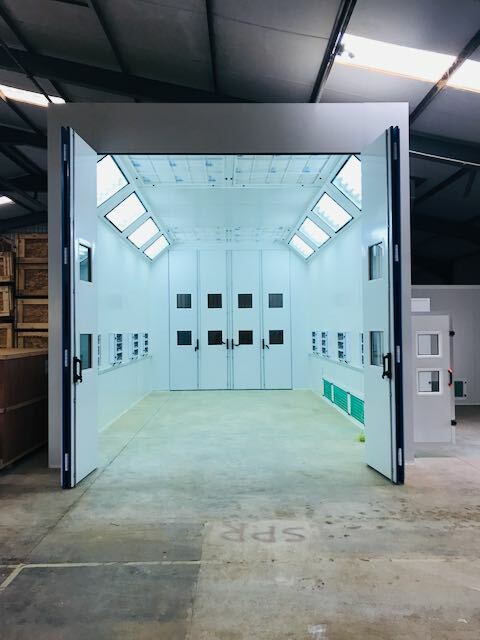

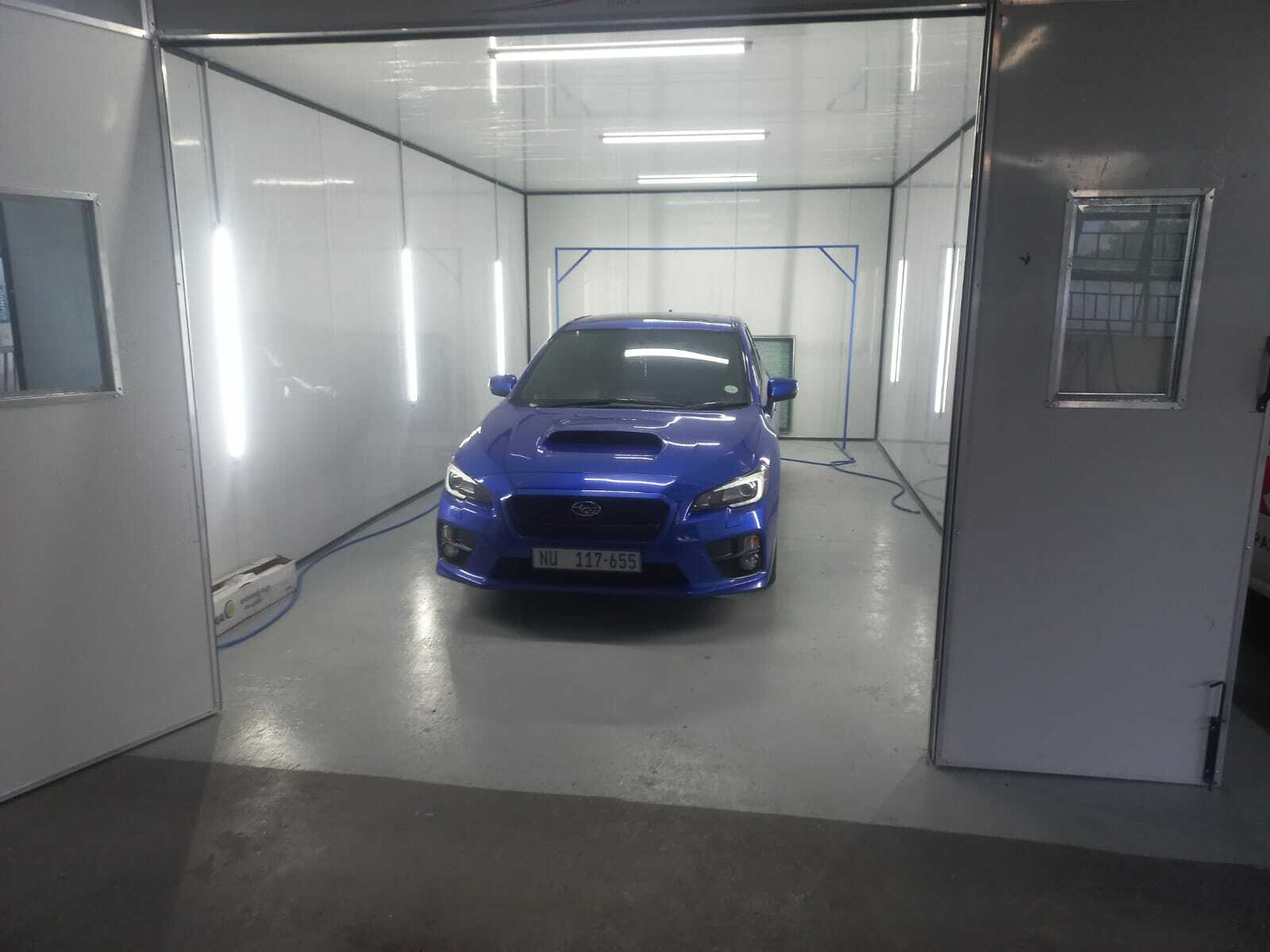

TS 1
Extraction and filtration without heating. The quickest, lowest-cost way to get spraying out of the open workshop.
- Typical size
- 6.9 × 3.9 × 2.7 m
- Airflow
- 12 000 m³/h
- Heating
- Optional add-on
- Filter stages
- 2

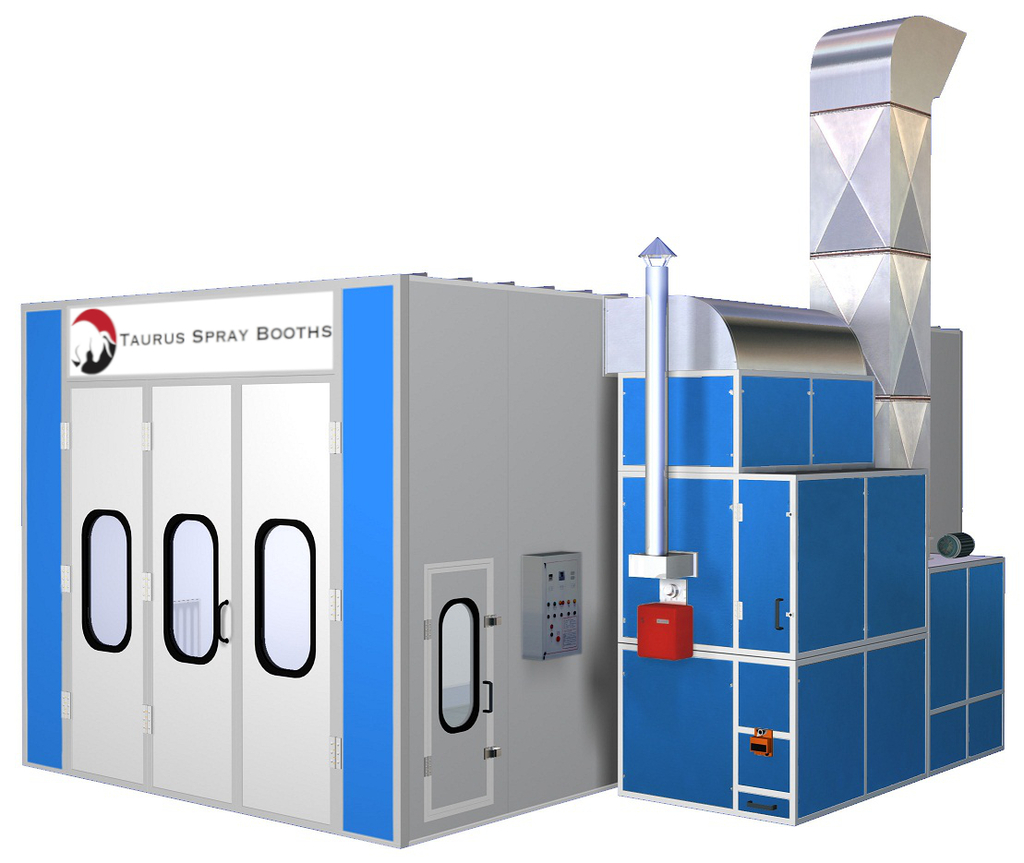

TS 2
Downdraft airflow with automatic heating and curing. The step up for workshops that need a dust-free finish and faster turnaround.
- Typical size
- 6.9 × 3.9 × 2.65 m
- Airflow
- 22 000 m³/h
- Heating
- Diesel, gas, IR or electric
- Filter stages
- 3
TS 3
Our flagship. Separate intake and extraction fans, ceiling and wall lighting, and four filter stages for finishes that have to be right first time.
- Typical size
- 6.9 × 3.9 × 2.7 m
- Airflow
- 18 000 m³/h
- Heating
- Diesel, gas, IR or electric
- Filter stages
- 4
TS 4
TS 3 technology with drying air movers for water-based paint systems, so flash-off times stay short.
- Typical size
- 7.5 × 4 × 3.8 m
- Airflow
- 25 000 m³/h
- Heating
- Diesel, gas, IR or electric
- Filter stages
- 3
TS 5 Jumbo
A taller, longer version of the TS 3 for large components, machinery, plant equipment and bigger vehicles.
- Typical size
- 7.9 × 3.9 × 3.6 m
- Airflow
- 25 000 to 33 000 m³/h
- Heating
- Diesel, gas, IR or electric
- Filter stages
- 3

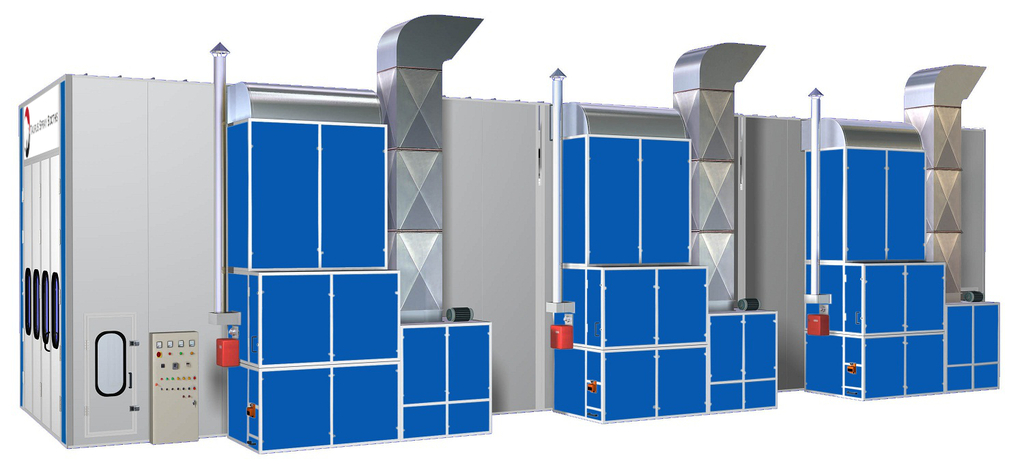

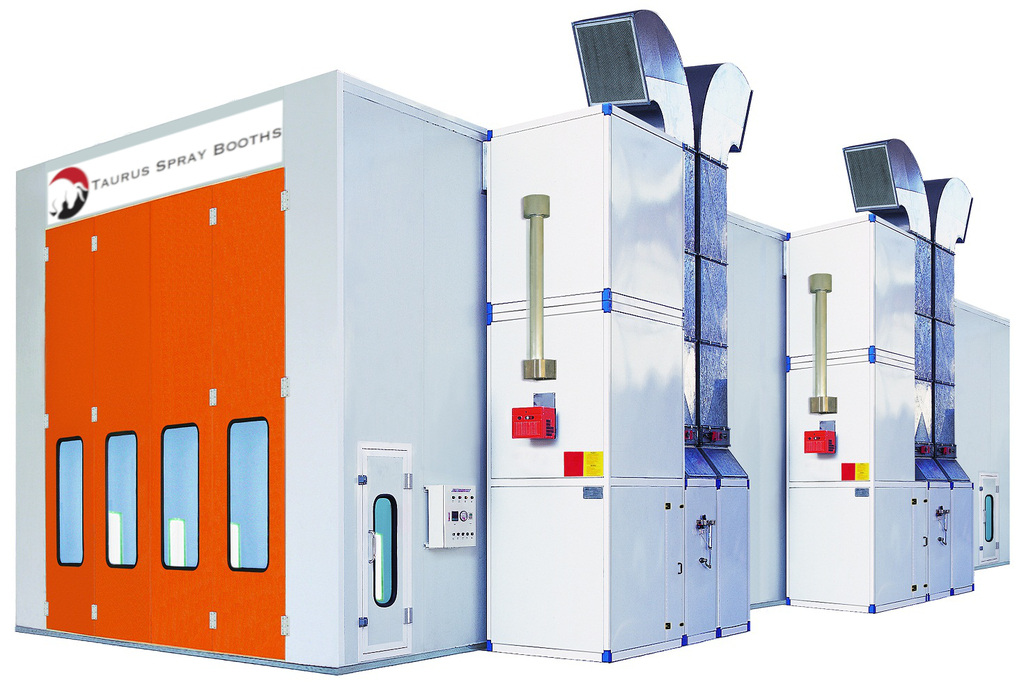

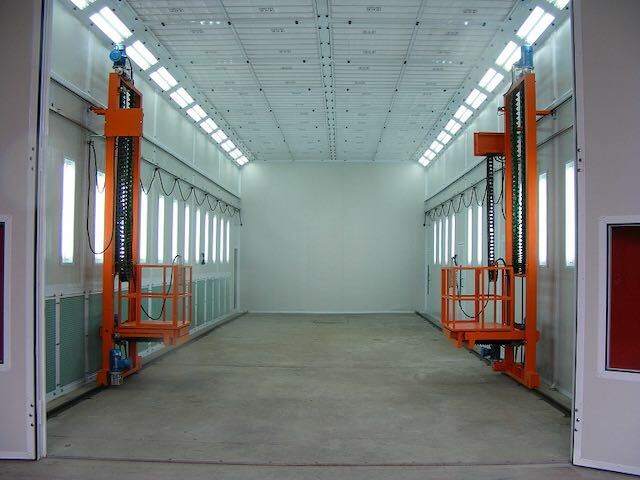

TS 6 XL / XXL
Large industrial spray booths for mining and earthmoving machines, heavy steelwork, trucks and buses. Every TS 6 is designed around the item and the building.
- Typical size
- 15 × 5 × 5 m
- Airflow
- 35 000 to 132 000 m³/h
- Heating
- Diesel, gas, IR or electric
- Filter stages
- 4
Our product range
Alongside spray booths we supply shot blast booths, ducting and fans as products in their own right, for new installations or to work with equipment you already have.
Spray booths
Six standard models, TS 1 to TS 6, each built to your size.
Shot blast booths
Blast rooms with their own extraction and filtration, any size.

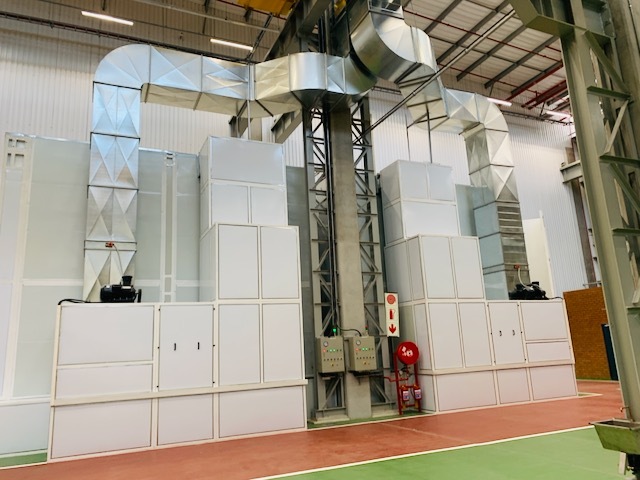

Ducting
Designed, fabricated and installed in galvanised, stainless and mild steel.
Fans and blowers
Sized from site conditions: centrifugal, axial, ExD and ventilation fans.

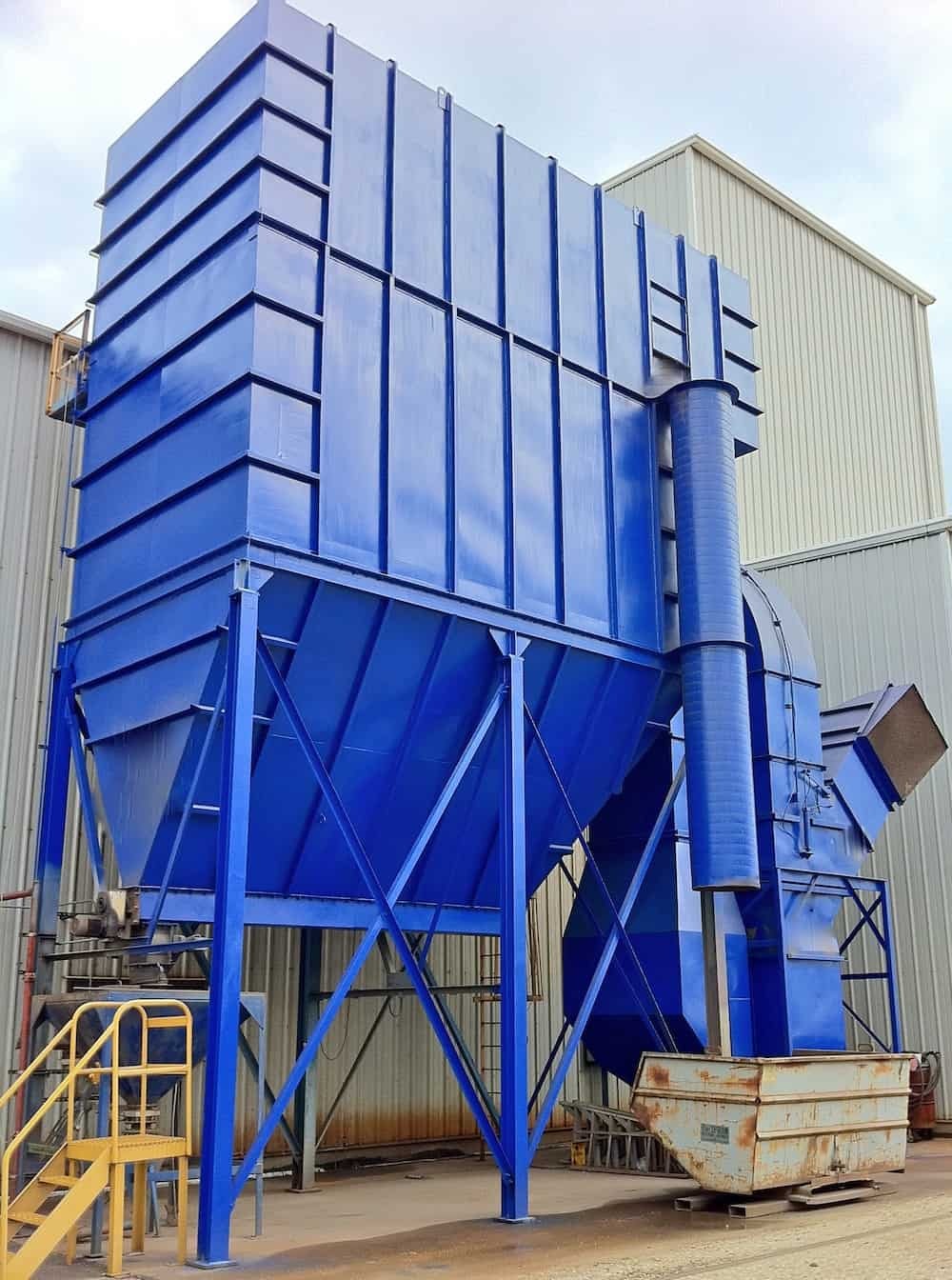

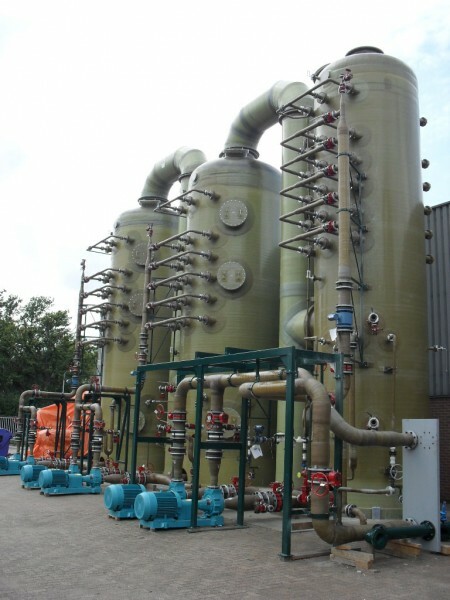

Dust collection and scrubbing. We also provide products and services for dust collection and fume scrubbing requirements. Tell us what you need.
From enquiry to first coat
Tell us the job
What you paint, the largest item, your building and your paint system. Photos and a rough sketch help.
Drawing and quote
We recommend a model and size and send a quote. On order, you approve a general arrangement drawing before manufacture.
Build and deliver
Standard booths from stock can ship in 2 to 3 weeks. Built-to-order booths typically take 8 to 14 weeks.
Install and train
Our own team installs, commissions and tests the booth, with specialist sub-contractors where required, then trains your operators. 12-month guarantee.
Why industry chooses Taurus
We design every booth for fire safety and airflow first, and we stay on after installation.
Taurus booths are designed to meet legislative and municipal fire safety by-laws, with fire dampers and flame-proof motors where the application calls for them. Our engineers size airflow from your site conditions rather than a catalogue table. Some booths and extraction systems are fabricated locally for short lead times, while complete booths are usually imported as kits to keep prices competitive, with strict quality checks and regular visits to our suppliers' factories. And because we service and repair booths from any manufacturer, you have one call to make for the whole paint shop.
Recent work
Manufacturers, mining equipment makers, shopfitters, pump and transformer plants, vehicle manufacturers and workshops across South Africa, Africa and the Middle East.

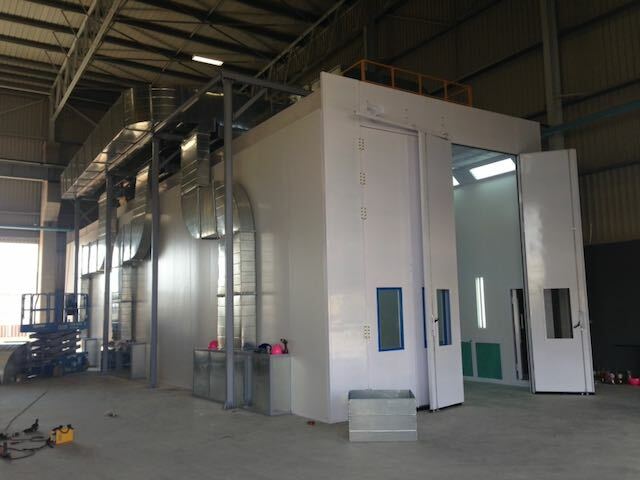

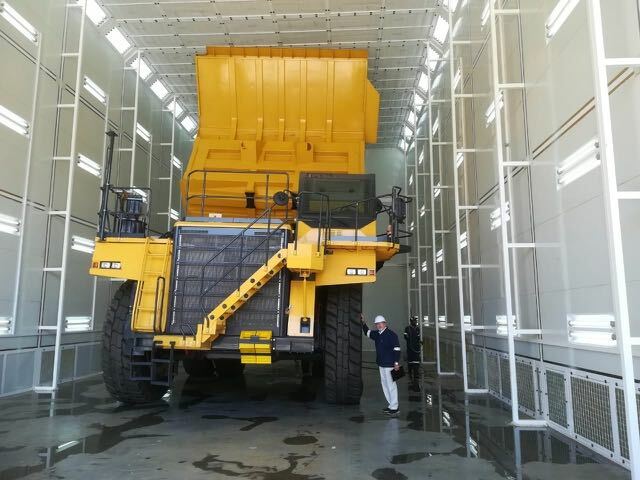

Mining equipment manufacturer

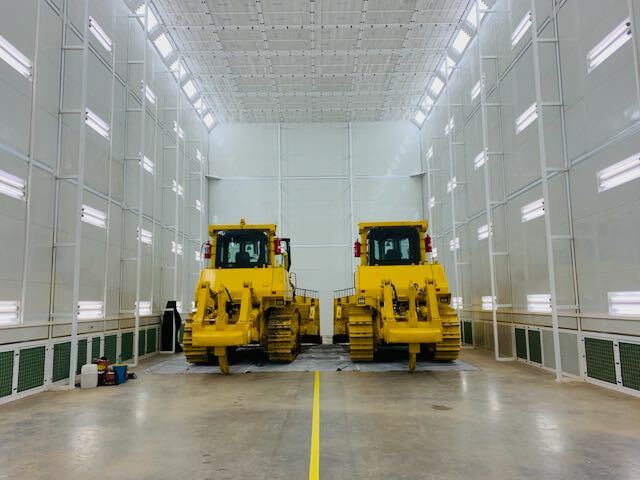

TS 6 XXL booths for haul trucks and dozers, in two phases.
Truck plant
18 m and 22 m truck spray booths with touch-screen control.
Kitchen and shopfitting manufacturer
Finishing booth for cabinetry and joinery.

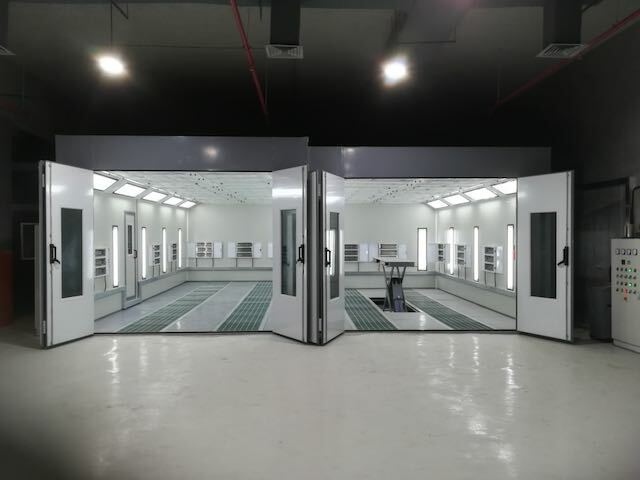

Middle East installation

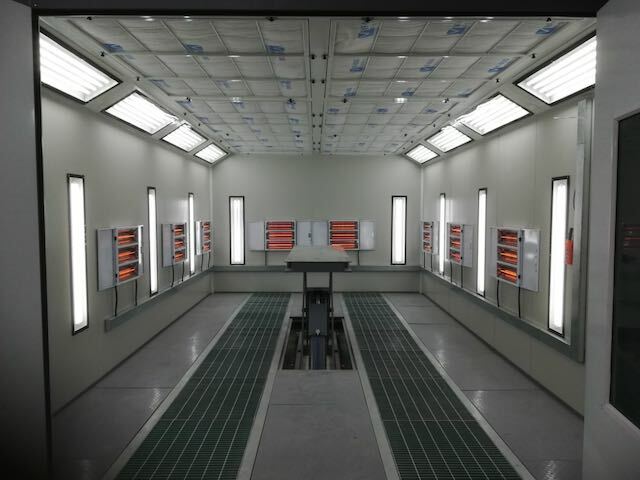

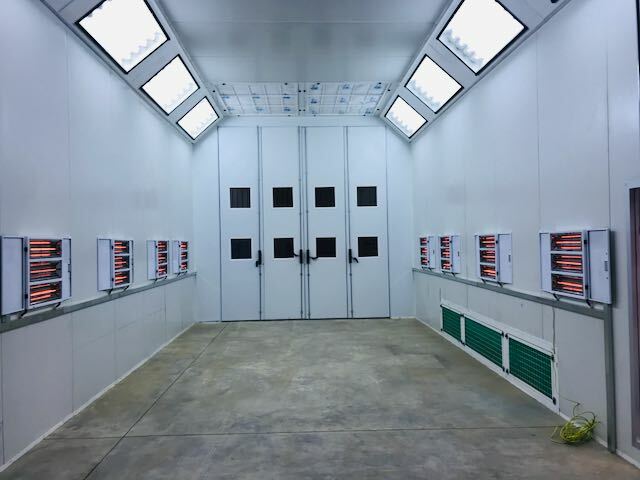

Two TS 2 booths with infrared heating, installed in Kuwait.
Questions we get every week
How much does a spray booth cost in South Africa?
Can you build a booth to fit my building?
Do you install outside Gauteng?
How long does it take?
Do you service booths from other suppliers?
What guarantee do you give?
Tell us what you need to paint
Send the size of the items you paint, the space you have and your paint system. We come back with a recommended booth, a layout and a quote.
